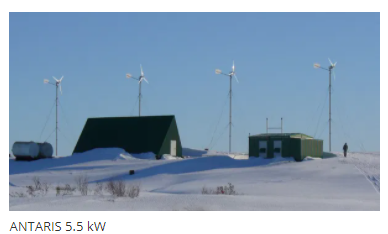

ANTARIS 5.5 kW Wind Turbine

SKU:
ANT 5.5kW
Weight:
57.00 KGS
Width:
CM
Height:
CM
Depth:
CM
Quantity:

Product Description

ANTARIS 5.5 kW Wind Turbine

Generator:


*Permanent-magnet rotor, brushless, gearless, maintenance-free
*Extremely strong permanent magnets for a high level of efficiency
*(NdFeBo permanent magnets, resistent to temperatures up to 150° C)
*Special ball bearings for reliably taking up radial and axial forces
*3-phase current
*Separate rectifier
*Either direction of rotation
*Voltage 0-1000 VDC
*Start of feed-in at approx. 100 rpm
*Power: 6000 watts at 380 rpm and 400 VDC
*Evenly rising power curve
*Weight: 57 kg
*Aluminium housing, surface cooling, base anchoring
*Gondola housing in GRP
*Protection class IP56

Rotor:


*Hub connection with aluminium flange and pressure-relief plate
*Stainless-steel screw connections with locknuts
*Three rotor blades in Carbon
*Computer-designed aerodynamic profile
*Special blade design to minimise noise
*Approx. 4.00 m in diamater; for low Wind with 4.40 m or 5.30 m diameter up to 10.0 m Mastheight!
*Weight of each blade: approx. 7.0 kg
*Dynamically and statically balanced
*Direction of rotation anticlockwise viewed from front
*Max. rotational speed 350 rpm
*GRP spinner cap
*Rotor colour to client specification

Support element comprising:


*Wind vane (weatherproof HDPE, off-white, slightly transparent)
*Square hot galvanized steel tube as support element
*All screw connections in stainless steel and fitted with locknuts
*Steel bracket as support for generator, configured for plug-in connection with azimuth bearing, fully galvanised
*Protected by patented rotor-blade positioning system
*Mast adapter with flange connector (tube 114.3 mm)

Storm protection:


*Rotor-blade positioning (“helicopter position”)
*Voltage monitoring with braking resistance
*Generator short-circuit

Control cabinet:


*Control system with Turbine Power Curve
*3-phased grid-feed in with Smart!wind Inverter 5.5 kW;
*optional 1-phased with 1 x Power One PVI 4.5 kW
*Control electronics with 3-phased turbine controller
*Connections / plug connectors protected against polarity reversal
*Controlling of the 3 alternator phases during turbinemode
*Reset switch with key (removable)
*Emergency-OFF switch
*6.0 kW braking resistance
*Rectifier, display etc.
